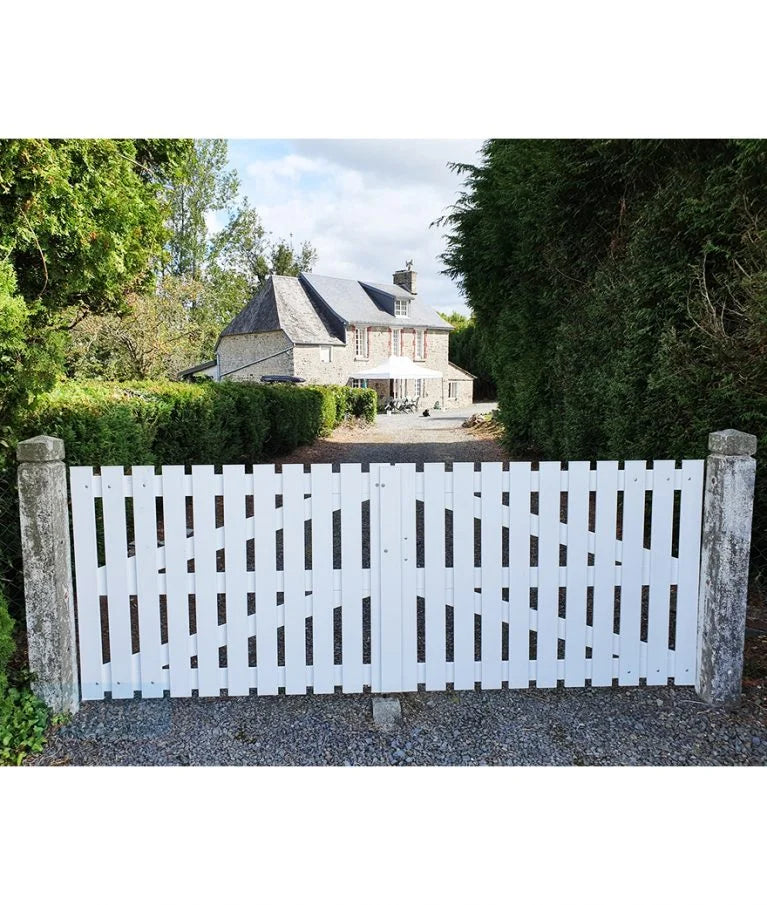

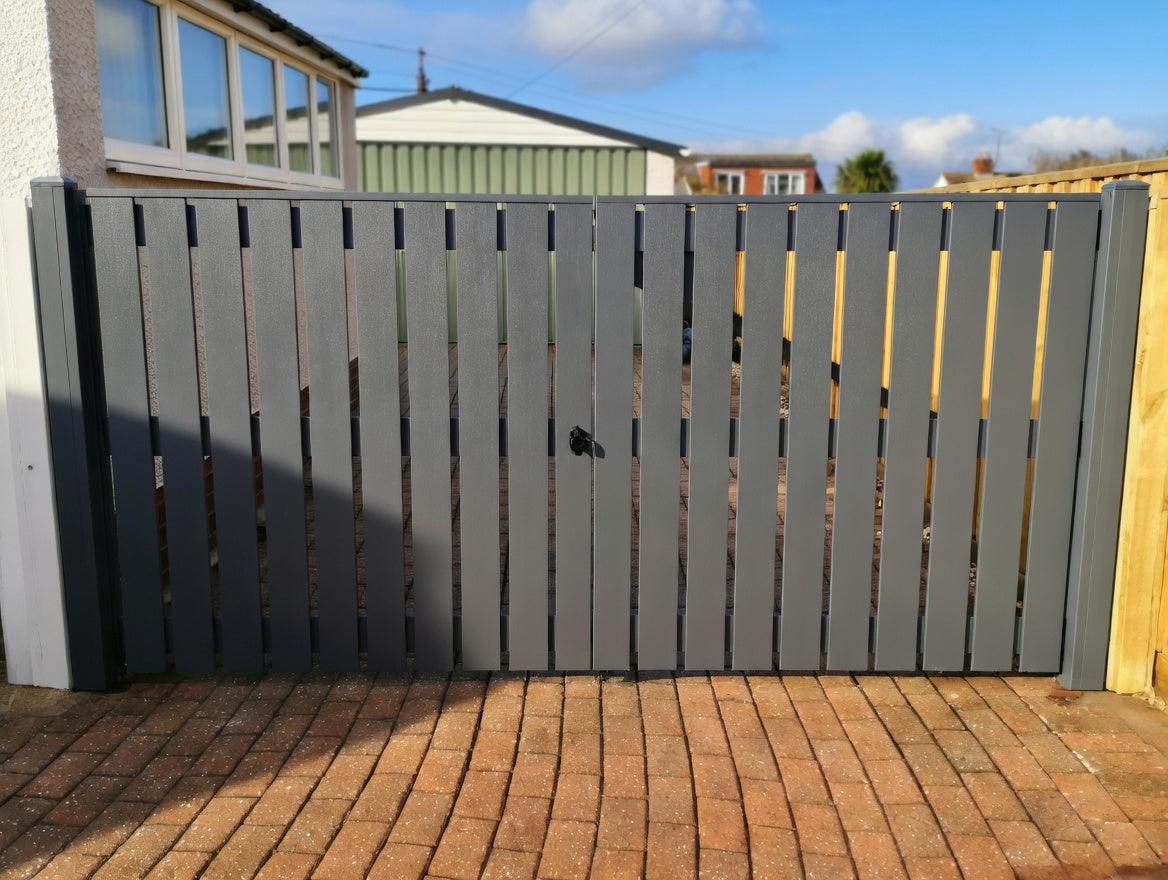

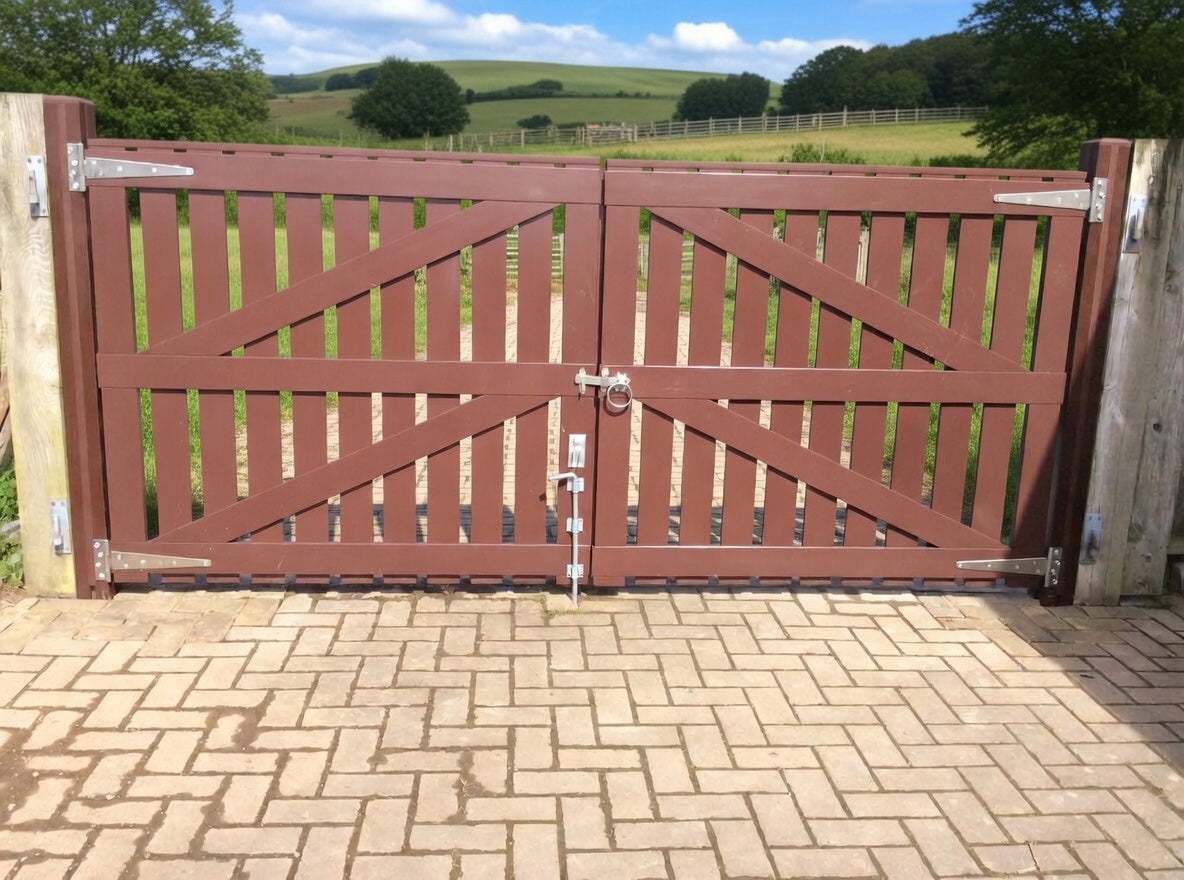

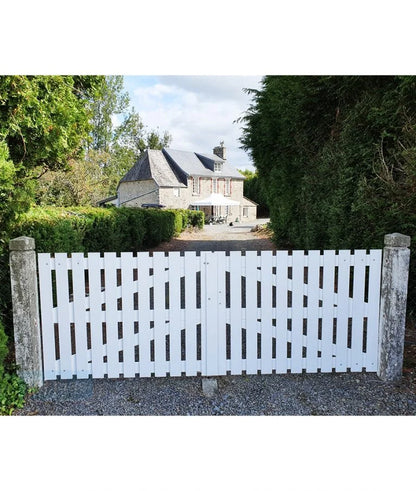

Slatted Double Driveway Gate | W: 1500 mm - 1950 mm, H: 1200 mm | Deluxe

.

Tekplas’ Plastic PVC Double Driveway Slatted Gates are made from high-quality PVC and will fit varying gaps between 1500mm to 1950mm and a standard height of 1200mm.  These are designed to replace your existing timber gates and are supplied with hinges, latch and posts, these gates can easily be fitted into an existing opening to enhance any home or garden.

Gate Type = Standard or Deluxe

The gates are made from 2 different profiles both 100mm wide our standard gates use a 15mm vertical profile and 15mm horizontal profile once manufactured, giving you a gate thickness of approx 32mm (as pictured) and the deluxe gates use a 34mm vertical profile and 34mm horizontal profile, once manufactured giving you a gate thickness of approx 70mm. Both profiles are hollow with internal webs for strength. The larger 34mm profile is best used on wider gates and offers a very heavy-duty gate. This is our deluxe product. Click here to see our standard product.

How To Measure Your Gap

We need to know the size of the gap you are filling when you order. We will manufacture the gate and posts to fill that gap, please measure the top, middle and bottom and give us the smallest distance. Will minus the posts and correct amount of clearance and make the gates to suit. Please add the size to the total gap box. If you have existing gate posts and want to use them, please call or email us and we can supply the gates only. But we will need to know the distance between the current posts so that we minus the clearance only.

Rebate Strip

On Double Gates, we fit a rebate strip to one of the gates. As in most cases, one of the gates will be used as an entrance gate, until they both need opening. Looking at the front of the gates, please let us know which gate you would like the rebate strip on. Left Gate or Right Gate. Remember the gate with the rebate strip on will be the gate stationary most of the time.

Post Options Explained

2 x PVC Posts = Each Post is 75mm Square and best used when fitting to walls.

2 x Aliminum Posts = Each post is 100mm Square and cut 300-400mm longer, best suited when you need to cement the posts into the ground.

1 x PVC Post & 1 x Ali Post = When 1 x post can be fixed to a wall and the other post needs to be cemented into the ground.

Security

We can now supply a new High-Security Gate lock. This comes with a key on one side and button on the other for easy opening from inside. These are made from high-quality materials with a 15mm steel square sliding bolt and brass lock mechanism and complete with 5 keys. Or we offer a coded lock, plus drop down bolts to hold the gates securely to the ground. Please see our fixings page for both locks offered.

The gates come complete with the following:

2 x Gate Leafs

2 x Hinges

1 x Ring Latch

2 x Posts @ 103cm High (As Standard)

We offer three different hardware types: Black Powder Coated, BZP = Bright Zinc Plated, or the best option, Stainless Steel. Especially if your close to the coast.

Fitting:

• We do not fit gates we manufacture them. But we do have a fitters page on the website

• The accuracy of the dimensions specified by you will reflect in the quality of fit.

• We recommend they are installed by a professional or skilled handy person.

• Please call Customer Services should you experience any difficulties during the installation.

• We do not advise fitting 3rd party locks or latches and cannot be held responsible if they cause fitting issues.

• Please be aware that plastic gates expand slightly in the heat but do not expand when wet (unlike wooden gates), so the correct clearance is needed to ensure an all-year-round fit.
