Wall Partition Gates

Wall Partition Gates

£129.99 GBP
£129.99 GBP
Sale Sold out
Shipping calculated at checkout.
Colour: White
Height: 1.2 metres
Gate Style: Solid

Build Time: 2-3 weeks approx (Depending on order size)

Description

Tekplas Wall Partition Gates

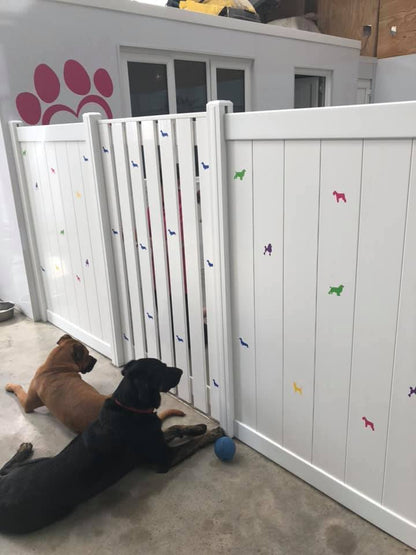

Tekplas Wall Partition Gates provide a strong, practical and hygienic access solution for our PVC Wall Partition System. Manufactured from durable twin-wall PVC, they are ideal for creating controlled access between partitioned areas.

Key Features

  • Manufactured from durable twin-wall PVC
  • UV stable and low maintenance
  • Easy to clean – simply wipe down or hose clean
  • Hygienic and suitable for environments requiring regular cleaning
  • Available in a range of heights and colours
  • Designed to complement the Tekplas Wall Partition System
  • Made in the UK by Tekplas

Important – Ordering Your Gate

The gate is manufactured 20mm smaller than the opening, providing 10mm clearance on each side.

Example:

  • Opening = 1000mm
  • Gate size = 980mm

When completing the Gap Box, please enter the gate size required after allowing for the 20mm clearance.

A minimum of 15mm clearance beneath the gate is also required for correct operation.

Installation

The gate is supplied pre-assembled, but it will need to be hung once the posts and partition system are installed.

The hinges and latch are not pre-fitted. This allows the gate to be correctly aligned and adjusted to suit the individual installation, particularly where floors or ground levels are uneven.

Latch Options

The latch you require depends on the height of the gate and whether you need to operate the latch from one or both sides.

Gates below 1200mm high:

  • No Latch – source and fit your own latch
  • Metal Thumb Latch – can be operated by reaching over the gate

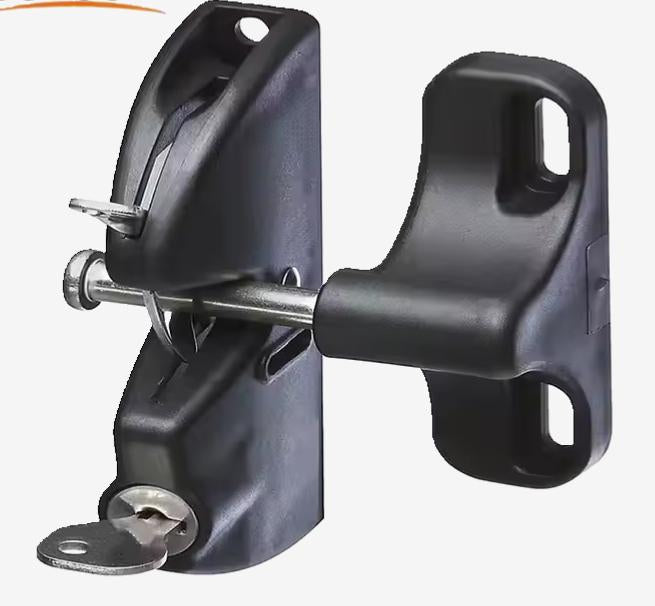

  • Single Gravity Latch – can be operated by reaching over the gate and its lockable

Gates 1500mm high and above:

  • No Latch – source and fit your own hardware

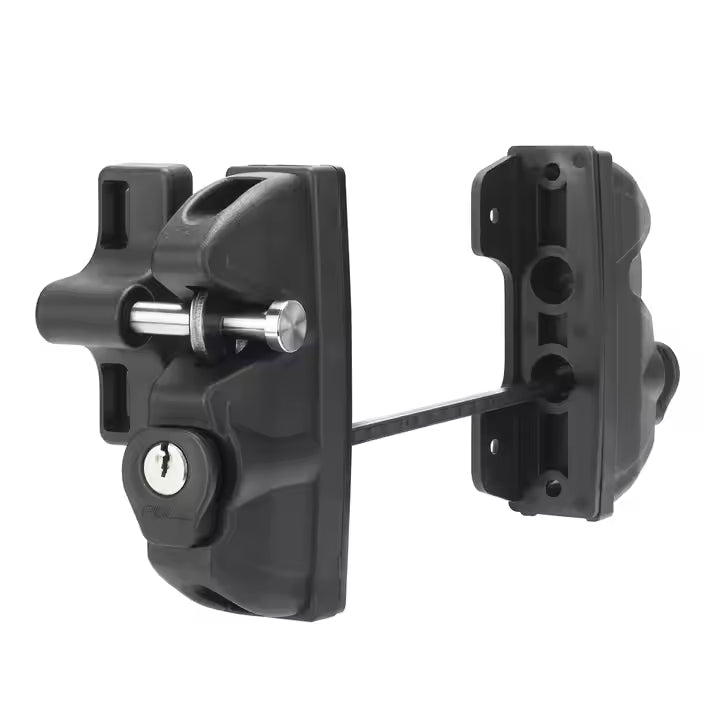

  • Double Locking Gravity Latch – can be operated from both sides of the gate

If you have a gate 1500mm high or above and only need the gate to be locked or operated from one side, you can use:

  • Single Lockable Gravity Latch
  • Pad Bolts – available from our Fixings & Accessories page

Please select the appropriate latch option when ordering based on your gate height and how you intend to use the gate.

Full installation instructions are supplied.

Please check your measurements carefully before ordering. If you are unsure of the correct gate size, please contact us before placing your order.



What is Included

What's Included

  • 1 x Gate – Supplied fully assembled

  • 2–3 x Hinges – The number of hinges supplied depends on the height of the gate

  • Latch Type: Choose from:
  • No Latch
  • Metal Thumb Latch
  • Single Gravity Latch
  • Double Gravity Latch

Posts

Posts are not included with the gate.

If you require one or more posts, please see our Finishing Posts. These are often used when a gate is fitted between existing panels or at the end of a panel run, depending on your installation requirements.

Link: Extra - Finishing Posts

How to Measure

Our gates can be made from 600mm - 1000mm wide, please enter the size in the gap box and please remember to minus 20mm clearance, this is 10mm per side.

Specification

3 Colour Choices

3 Height Choices

Solid or Slatted Panels

How to Install

Gate Installation

This product is supplied with full installation instructions.

The gate itself comes pre-assembled, but it will need to be hung and fitted once the posts are installed and everything is set up. It is important to ensure the correct clearance is allowed beneath the gate and between the gate and the posts.

Please note that we do not pre-fit the gate, hinges or latch at the factory. This is because every installation location is different, and floors and ground levels are not always perfectly even. Pre-fitting the gate and hardware at the factory could result in the gate not opening, closing or operating correctly once installed at its intended location.

By fitting the gate once the posts are in position, the hinges, latch and clearances can be correctly adjusted to suit the specific installation.

Shipping

Delivery Price Depends On The Amount Order

This Will Be Worked Out At The Checkout

Due To The Heights These Normally Come On A Pallet Delivery

Care Guide

Tekplas PVC Fencing Aftercare Guide To keep your Tekplas fencing looking fresh and performing well, we recommend carrying out maintenance twice a year – once at the start of spring and again at the end of summer.

Step 1: General Cleaning

  • Hose down the fencing to remove surface dirt and grit.
  • Wash thoroughly with hot soapy water and a soft sponge. This removes build-up from winter weather or heavy rainfall.

Step 2: PVC Surface Treatment

  • Once dry, use a PVC solvent cleaner to restore the finish. We highly recommend Everbuild PVC Solvent Cleaner for best results.
  • Spray directly onto the fencing and wipe with a clean cloth. This helps maintain the appearance, especially for coloured fencing, by protecting against fading from UV exposure. It takes many years of full sunlight, but following these steps will help to prevent this happening.

Why Maintain Your PVC Fencing?

Unlike timber, PVC won’t rot, absorb water, or dry out and split during the summer months. It also won’t need repainting like traditional wooden fencing,
saving you time and ongoing maintenance costs. With just a small amount of care, your Tekplas fencing will continue to look great and perform well for many years to come.
